EN1092-1 Plate Flange

Carbon Steel Plate(PL) Flange, Stainless Steel Plate(PL) Flange, Alloy Steel Plate(PL) Flange Manufacturer In China

Cangzhou Taichang Pipeline Equipment LTD,. is a specialised manufacturer of high qualty ASME/ANSI/DIN industrial Plate flanges in China. We offer immediate delivery programs for standard size carbon steel plate flanges and stainless steel plate flanges. Plate flanges manufactured in carbon steel special stainless steel grades, nickel alloy and alloy steel can be suppled with just in time programs.
Plate flanges are most widely used in fuel and water pipelines, where two flange plates are bolted together with a gasket in between them. The flange plate will have bolt holes all around the perimeter and will be used to create junctions, tees and joints.

Advantages of Plate Flanges

  • Free of any defects
  • Superior grain structure compared to forged or cast products
  • Extended service life
  • Reduction of the normal maintenance costs

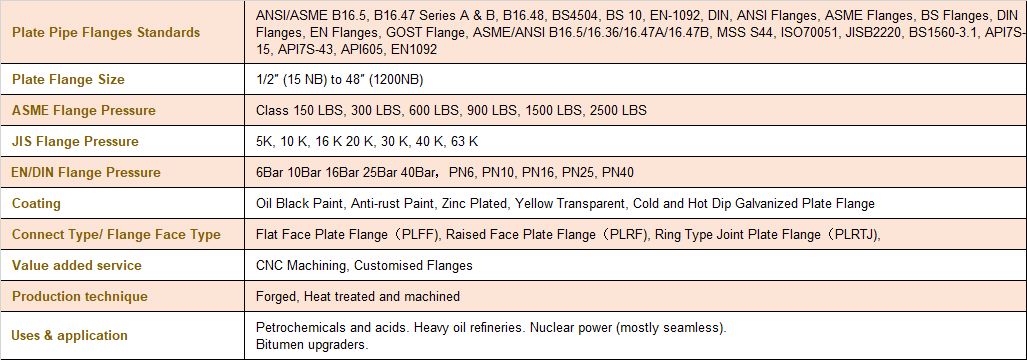

Specification Chart Of Plate Flange

Connect Type/ Flange Face Type

Raised Face Plate Flange(PLRF)

Flat Face Plate Flange(PLFF)

Ring Type Joint Plate Flange(PLRTJ)

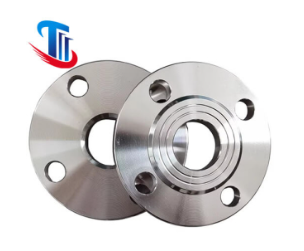

Plate Flange

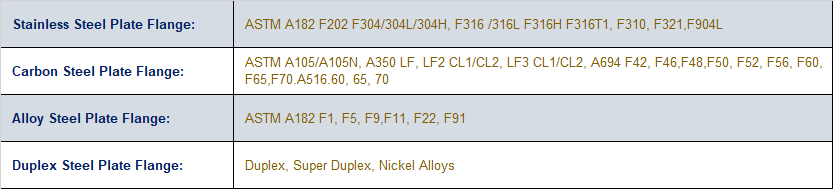

Plate Flange Material Grades

Plate Flange Process Flow Chart

Marking & Packing

Products are packaged to ensure that there is no damage during transit. In case of exports, standard export packaging is done in wooden cases. All elbow fitings are marked with Grade, heat No. , Size, Degree and our trade mark. On special requests we can also make custom marking on our products.

Quality Assurance

In Taichang all fittings and flanges are subiect to strict inspection at each stage of the production process from starting material purchasing to product dispatch. They are visually examined for conformity to ASTM ASME MSS DIN EN and JIS codes and standards. Upon request, official certified inspection Agencies can be called in to witness the material reports dimensions and quality conformity of products.

Test reports

Manufacturer Test Certificate as per EN 10204 / 3.1B, Raw Materials Certificate, 100% Radiography Test Report, Third
Party Inspection Report
