ASME/ANSI B16.9 Buttweld Pipe Stub End

Butt Weld Stub End, Carbon Steel Stub End, Stainless Steel Stub End, Alloy Steel Stub End, Long Neck Stub End, Short Stub End Manufacturer In China

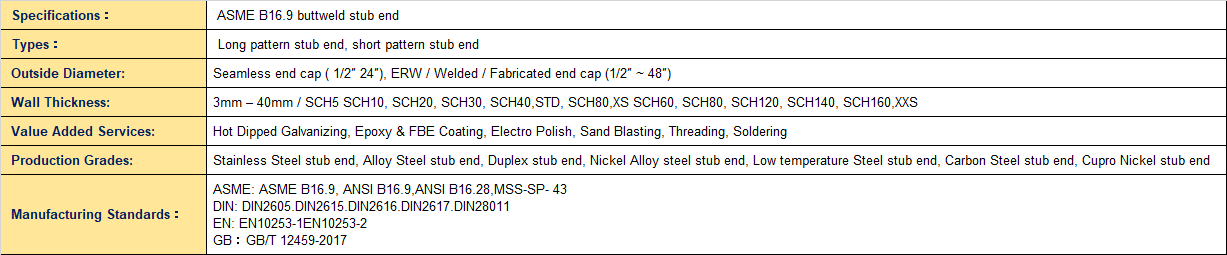

The specification of carbon steel stub end is in a manner such as type, radius, range and dimension. Based on this the product is manufactured and tested. The nominal diameter, O.D, length and diameter of lap represents the short pattern stub end and long pattern stub end dimensions. Therefore, be the first one and without wasting any time, join with us and get the perfect stub end with all the proper specifications and dimensions. The price rates are reasonable and also the delivery time is perfect.
Stainless steel short type stub end grades start from ASTM A403 and it goes on. This is the same for long type stub too. We keep in mind all these minute details and accordingly the team works on it. ASME B16.9 short stub end manufacturers are available everywhere in the market but no one can beat our standard as we have maintained a standard and thus it becomes difficult to someone else or a new comer to come over it.

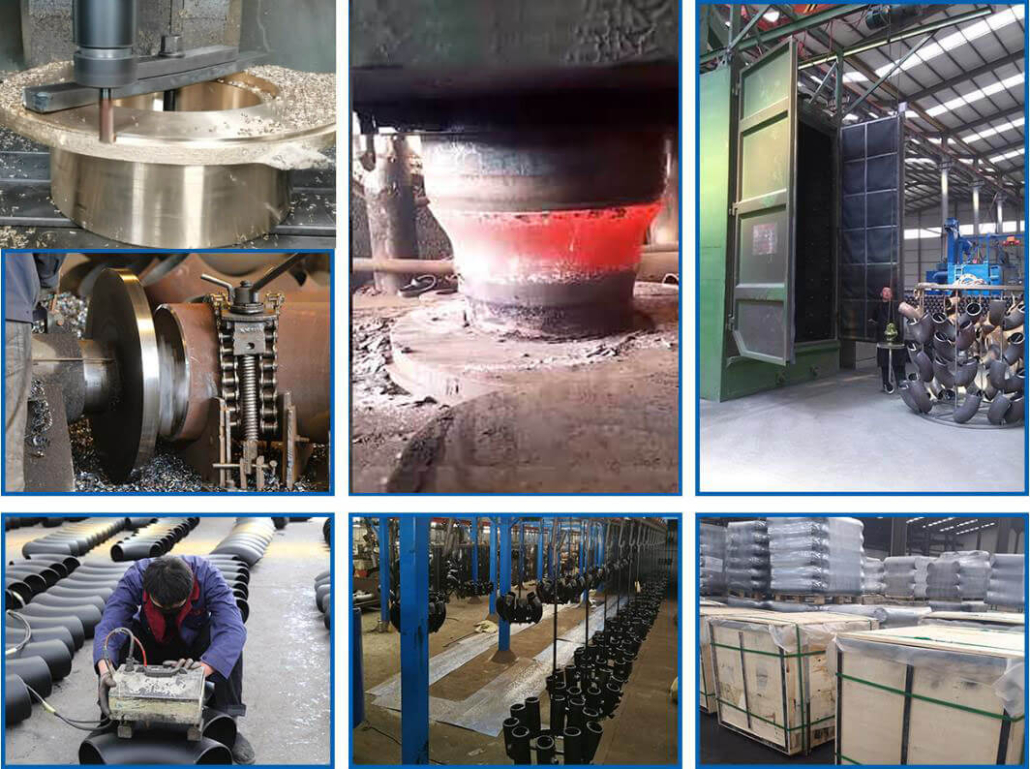

Buttwelded Pipe Stub End Production Range

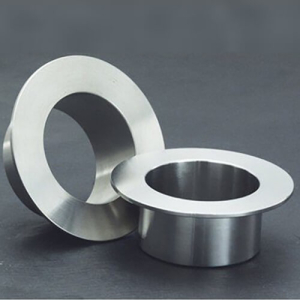

Carbon Steel Stub End

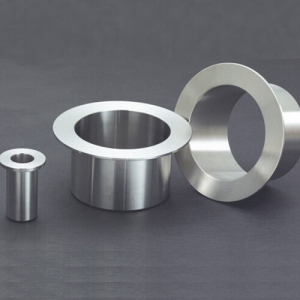

Alloy Steel Stub End

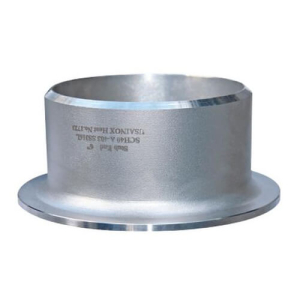

Stainless Steel Stub End

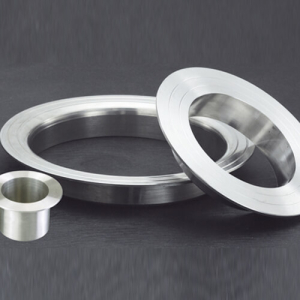

Short Type Stub End

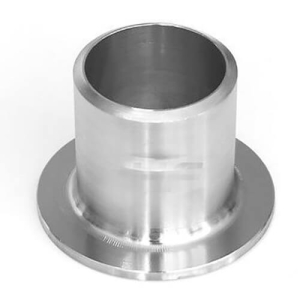

Long Type Stub End

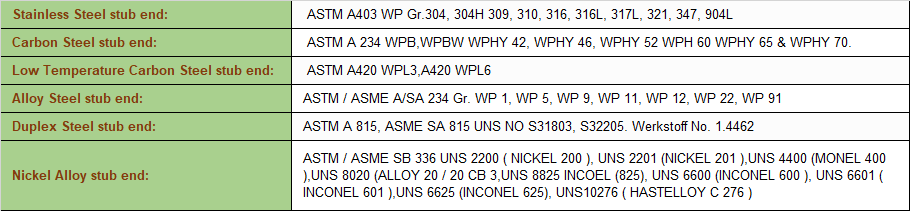

Buttwelded Pipe Stub End Material Grades

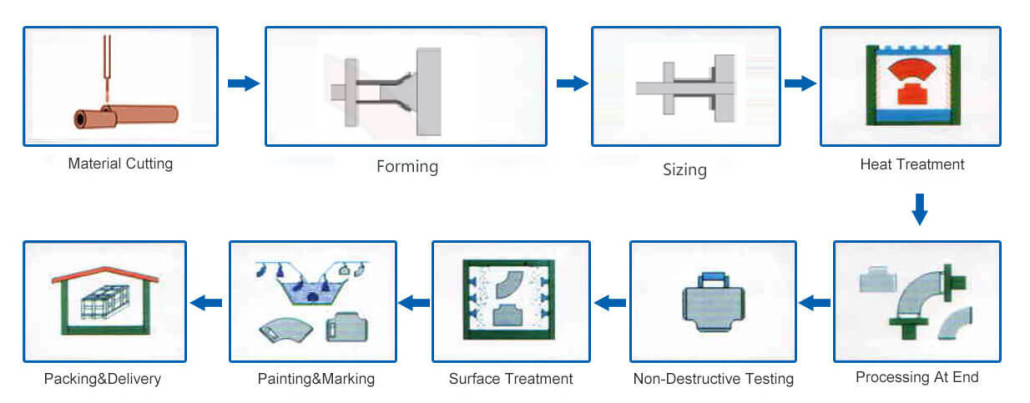

Buttweld Reducer process flow chart

Marking & Packing

Products are packaged to ensure that there is no damage during transit. In case of exports, standard export packaging is done in wooden cases. All elbow fitings are marked with Grade, heat No. , Size, Degree and our trade mark. On special requests we can also make custom marking on our products.

Quality Assurance

In Taichang all fittings and flanges are subiect to strict inspection at each stage of the production process from starting material purchasing to product dispatch. They are visually examined for conformity to ASTM ASME MSS DIN EN and JIS codes and standards. Upon request, official certified inspection Agencies can be called in to witness the material reports dimensions and quality conformity of products.

Test reports

Manufacturer Test Certificate as per EN 10204 / 3.1B, Raw Materials Certificate, 100% Radiography Test Report, Third
Party Inspection Report
