Full bore & reduced bore

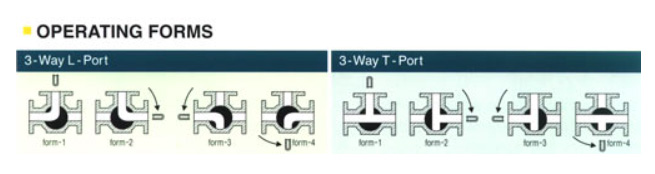

  • T Port or L Port
  • Side Entry and Top Entry
  • 4-Seat Design
  • Face to face: Manufacturer Standard
  • End Flange Dimensions: ANSI B16.5

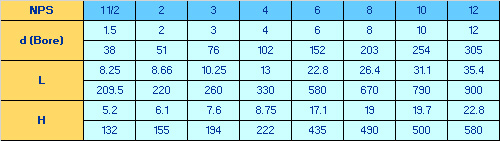

Class 150 Dimensions

Units: inch / mm

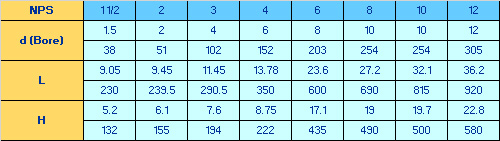

Class 300 Dimensions

Units: inch / mm



Class 600 & BY Series (120° 3-Way)

Information will be supplied upon request
