Self-Acting Direct type Pressure regulator

PRESSURE REGULATORS

Self-Acting Direct type Pressure regulator

Description

The KOMOTO PR-1207A pressure reducing regulators precisely control downstream pressure to a predetermined set-pressure. Thanks to the innovative design, they provide quick response to sudden pressure changes.
The PR-1207A series regulators offer maximum capacity, quick response, and accurate pressure control. The optimized design for fast and easy maintenance will minimize the total cost of ownership.

Features

  • Quick acting two-path control pilot control system
  • Top-entry design for ease of maintenance
  • Variable actuator sizes for all pressure control ranges
  • Sufficient balanced diaphragm for increased sensitivity
  • Full port design for high capacity

Control range: 0.005 to 45 BarG
Temperature Range : -25 ~ 200 ˚c
Size : 1/2” ~ 2”

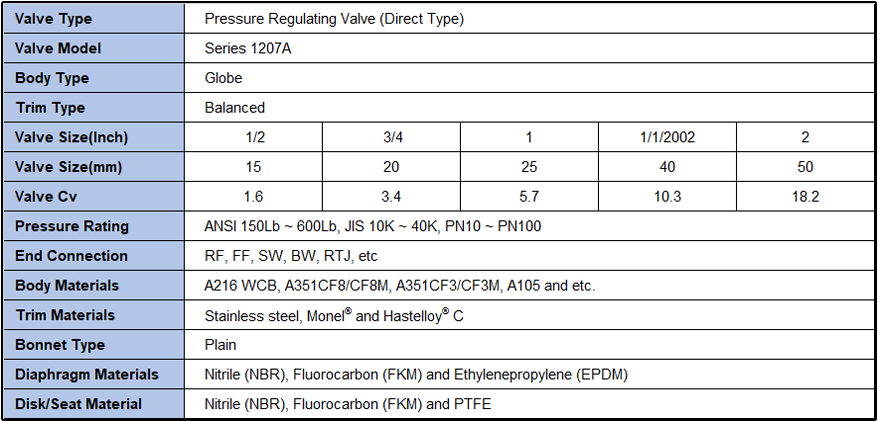

Specifications

* Other special materials are available upon request. Please consult with KOMOTO technical sales representatives.
