Floating Ball Valves
FORGED STEEL, SIDE ENTRY SPLIT BOLTED BODY, SEAT SUPPORTED FLOATING BALL, SOFT OR METAL SEATED, ANTI BLOW-OUT STEM, ANTISTATIC DEVICE, FIRESAFE DESIGN

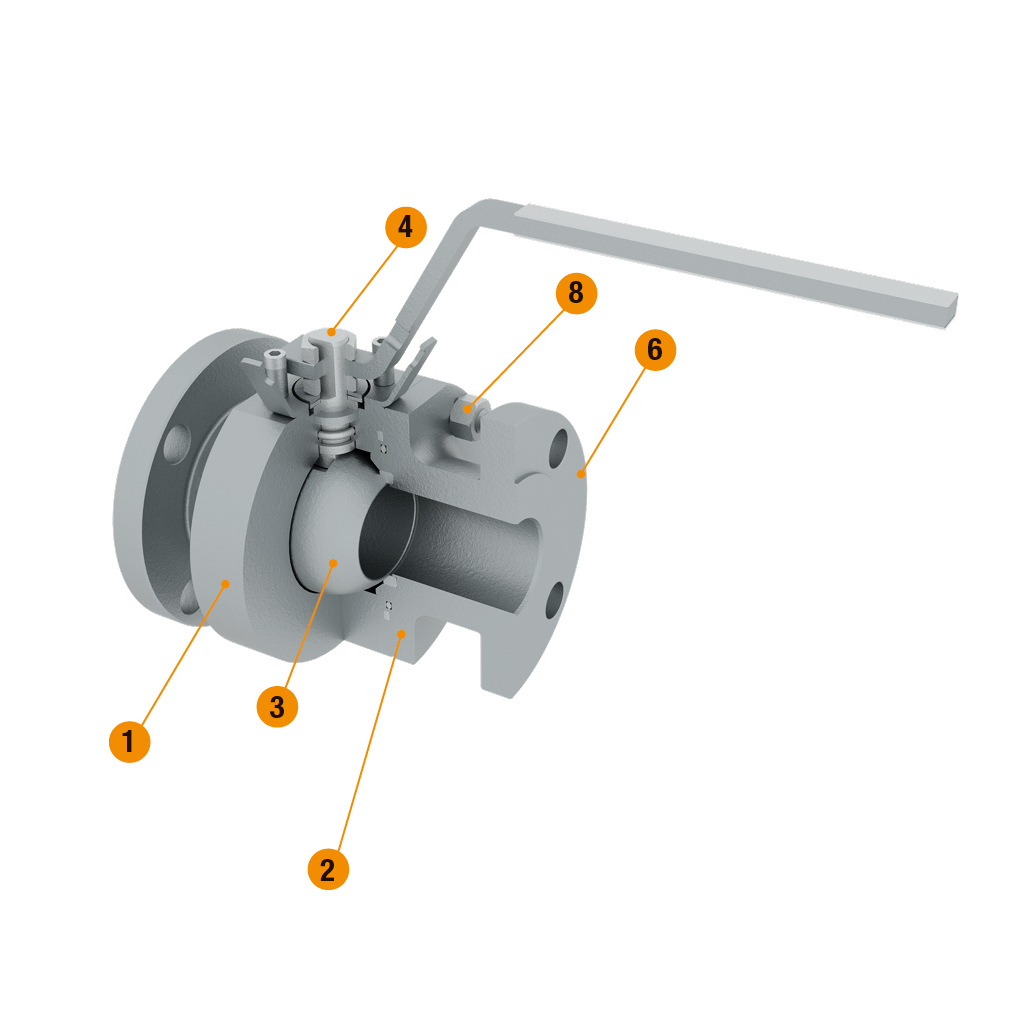

BODY
The body is forged in carbon, stainless and other CRA steels commonly used in the O&G industry such as Duplex, Super Duplex and Nickel Alloys. Its design is in compliance with the relevant API and ASME Standards. The upper part of the body is machined to integrate ISO 5211 coupling. It is provided with a double-sealing system, made of a primary gasket (PTFE or O-Ring) and a Graphite secondary seal for a fire safe design.
SEAT RINGS
Seats are machined from a solid thermoplastic ring and encapsulated in a specially machined pocket in the body/closure for longer life. The material is selected based on valve pressure/temperature design data in order to grant the best performance under any conditions. For special services (slurry, presence of solids, high temperature) the soft seat can be replaced by a metal ring hard faced with Tungsten or Chrome Carbides Coating (Metal Seated).
BALL
The ball is supported by the seats allowing a slight floating movement. Because of this design, the fluid pressure acts on the upstream side of the ball producing a positive seal of the same against the downstream seat. In case of a perfect balance of the sealing elements, a pressure equalization of the body cavity is possible. The ball makes a 90° movement from the fully open to the fully closed position driven by the stem connected to a slot in the ball. Its circular opening allows for minimal pressure loss. In metal seated execution the sealing area of the ball is also coated with Tungsten or Chrome Carbides and lapped with the seats to obtain a tight sealing.
STEM
The stem is designed to comply with relevant API Standard requirements. It is inserted from inside the body to connect with the operator and its shouldered design ensures that it cannot be ejected by the internal pressure (Anti Blow-Out). It houses the stem sealings, either elastomeric O-Rings or thermoplastic Lip Seals, designed to meet the most stringent Fugitive Emissions requirements. A Graphite ring integrates the set of sealings as a Firesafe barrier.
CLOSURES
The closure is bolted to the body by means of fully threaded studs and nuts. They are machined to the specified ends (Flanged, Butt Weld, Hub) for connection to the line.
BODY BOLTING
Body studs and nuts are supplied in materials according to ASTM standard and can be coated to any special requirement.
OPTIONALS
Locking plate/device can be provided upon request
