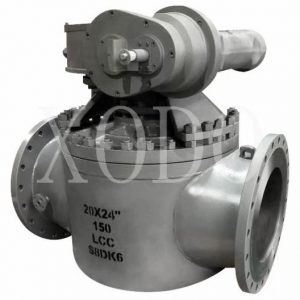

API Sleeve Type Plug Valve

PLUG VALVES

API Sleeve Type Plug Valve

Product Description

Design standard : API 599 API 6D
Product scope :

  1. Pressure range :CLASS 150Lb~1500Lb
  2. Nominal diameter : NPS 1/2-40″
  3. Body material:A105、LF2、F304、F316、F304L、F316L、F51,WCB、LCB、WCC、CF8、CF8M、CF3、CF3M、A890 4A etc.
  4. End connection :RF RTJ BW
  5. Drive device: Lever, Gear box, Electric, Pneumatic, hydraulic device, Pneumatic-hydraulic device;

MAIN STRUCTURAPRODUCT STRUCTURAL FEATURES

Sleeve type soft sealing plug valve acc. to ANSI is applicable to the cutting and connection of pipelines medium that are used in various industries such as petroleum, chemical industry, pharmacy, chemical fertilizer, power industry etc under nominal pressure of CLASS150-900LBS, and working temperature of- 29-180°C.

FEATURES

  1. The product has reasonable structure, reliable sealing, excellent performance and beautiful appearance.
  2. Its sealing is realized by the sealing face around the sleeve. Ithasunique 360 degree metal edge for protection and fixing of the Sleeve.
  3. There is no cavity in the valve for accumulation of medium.
  4. Metal edge provides the function of self-cleaning when the plug is rotated, applicable to the operation condition that is glutinousand apt to smudge.
  5. Its characteristic double-direct ion flow makes installation and use more Convenient.
  6. The materials of the parts and sizes of flanges can be reasonably configured according the actual operation condition of the requirements of the customers, so as to meet the various needs of engineering.
