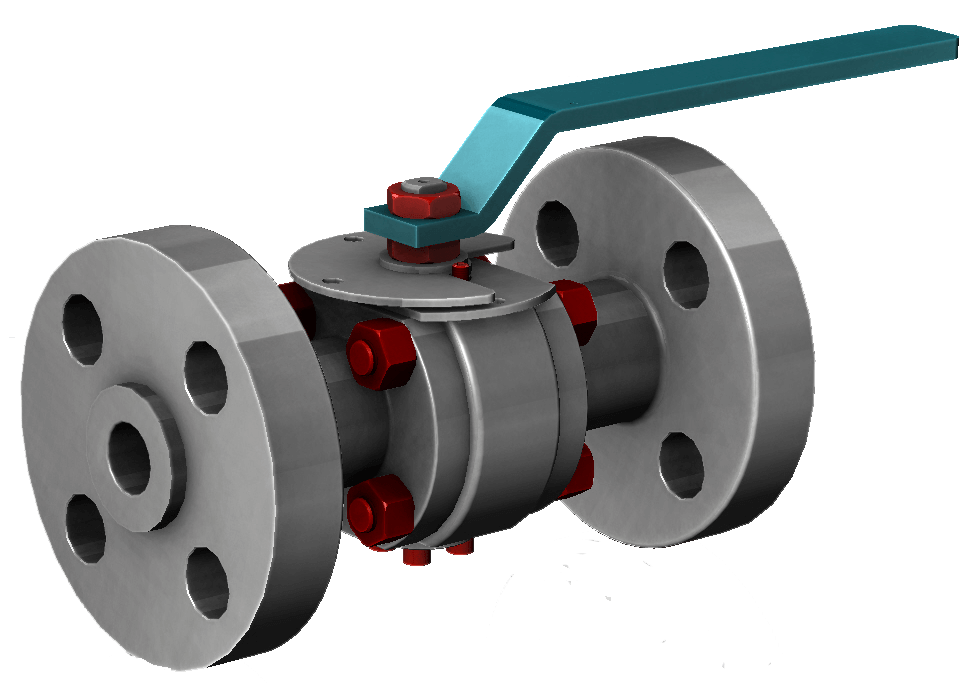

Three pieces floating compact design ball valves, designed to prevent any seats damage during the welding process.

SPECIFIC DATA

Materials:

  • Carbon steels, stainless steels
  • Special alloys: Monel, Hastelloy, Alloy 20, Incoloy, Duplex S.S., peculiar copper alloys, others

Ends:

  • Flanged
  • Socket weld
  • Butt weld
  • Threaded

2 Piecese Bolted Body

  • ½” to 1 ½” Full Bore only class 150# & 300#
  • 2″ to 8″ Full Bore
  • 2″ to 10″ Reduced Bore class 150# & 300#

3 Pieces bolted body

  • ½” to 6″ Full Bore
  • 2″ to 8″ Reduced Bore class 600# to 1500#
  • ½” to 1½” Full Bore
  • 2″ Reduced Bored class 2500#

2 Pieces screwed body

  • ¼” to 1½” Full Bore
  • 2″ only Reduce Bore class 600# to 1500#

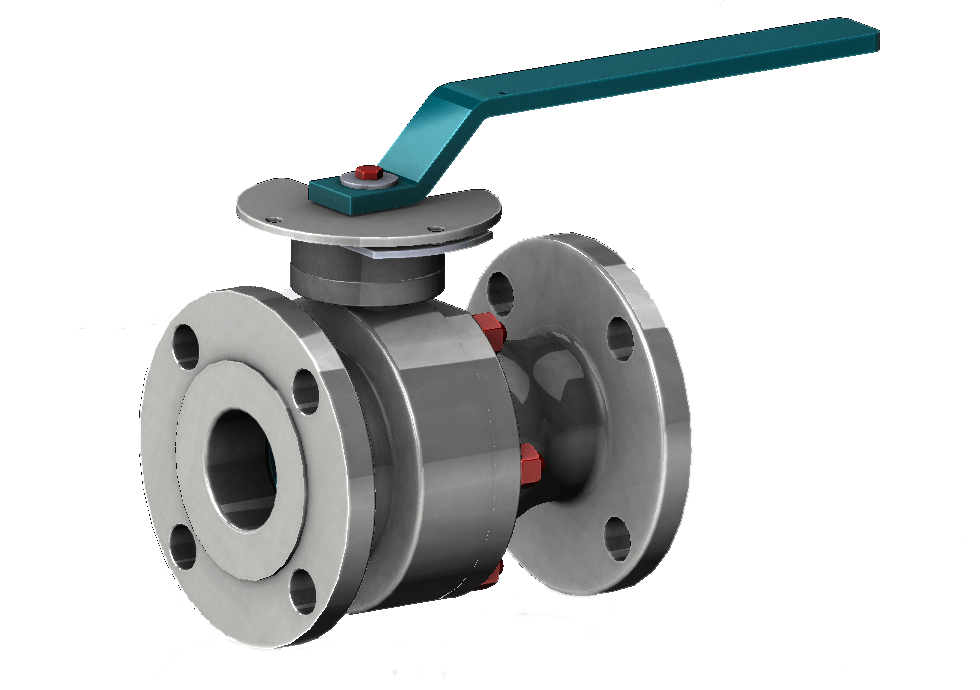

Two flanged pieces ball valves, rugged construction, suitable to withstand the piping loads and the thermal shocks. “Split Body” type.

SPECIFIC DATA

Materials:

  • Carbon steels, stainless steels
  • Special alloys: Monel, Hastelloy, Alloy 20, Incoloy, Duplex S.S., peculiar copper alloys, others

Ends:

  • Flanged

2 Pieces

  • 2″ to 4″ Full Bore only class 150# & 300#
