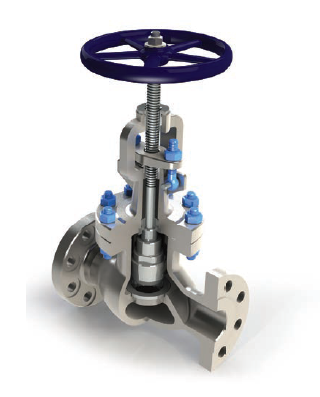

CAST STEEL GLOBE VALVES
CAST STEEL GLOBE VALVES
KVC (UK) LTD Globe valves are manufactured to API Std.600 and tested to BS 1873, B16.34 and tested to API Std.598
Globe Valves are used where throttling and shut off are required. They can also be used for on-off service, but due to high pressure drop, this is generally confi ned to applications where the valve is normally closed and pressure drop is not important when the valve is open. Close throttling can lead to altered velocities, this leads
to excessive noise and vibration which can damage the valve or piping system.

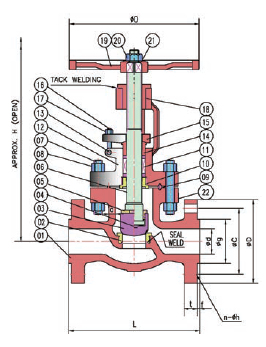

BODY AND BONNET
Back-Seat Bushing
Gland can be Re-packed in-situ
Spherical body with large radius, allows stress and turbulence to be minimised
BODY-BONNET JOINT / GASKET
Range of materials to suit Pressure Classes

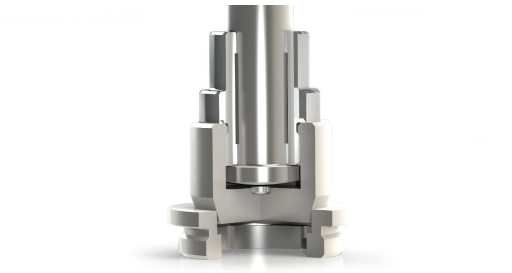

DISC
Valves are supplied with plug type disc as shown
WELDED-IN SEAT RING
Seat ring is seal welded to eliminate potential leak paths.
STEM
One piece stem, forged tee-head connection
Rolled or cut ACME threads subject to valve size
Polished on the packing contact area
Ensures long life & optimal tightness
Engineered stem break-point above packing area
Ensures sealing integrity to atmosphere.
GLAND
The Gland Flange & Packing Gland are manufactured in two separate pieces
Adjustable gland in service
Optional live loaded gland can be specified
Backseated design allowing the gland packing to be replaced in situ.
STUFFING BOX
Packing contains corrosion inhibitor to avoid stem pitting.
Deep stuffi ng box design ensures long packing life.
END CONNECTIONS
As Standard production covers valves with:
Flanged ends to ANSI B16.5
RF Raised face serrated fi nish or, On request, with any other type of fi nish
RTJ Ring Type Joint
Others
Butt-welding ends (BW) to ANSI B16.25
Customer must specify the type of schedule required, or class of pipe, or diameter and bore.
Special end connections on request.
FACE to FACE
Face to Face dimensions to ANSI B16.10.
HANDWHEEL
Handwheels designed for ease of operation.
GEAR OPERATED VALVES
Valves can be supplied with bevel gear operators
MOTOR OPERATED VALVES
On request valves can be supplied equipped with, or prepared for actuators Electric / Pneumatic / Hydraulic (according to customers’ requirements).
Customer is to advise all service requirements and applicable specifi cation with enquiry.
ACCESSORIES
OnRequest:
By-passes, locking devices, chain wheels, fl oor stands, special extension stems and others.
TESTING
Standard Testing is in accordance with API 598.
Customer specifi c testing by agreement.

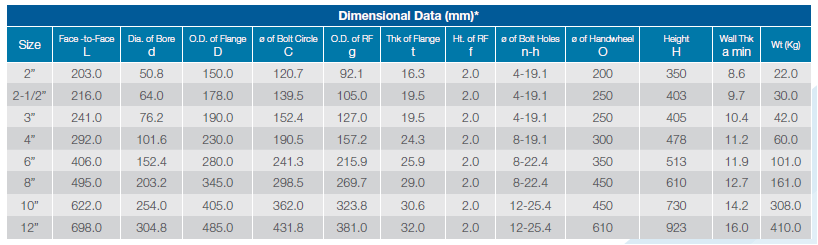

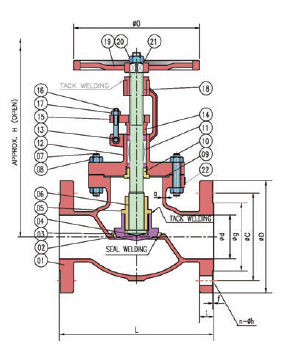

CAST STEEL GLOBE VALVES - ANSI 150
OPERATOR OPTIONS
• Gear Operated recommended for size 12” above
• For Gear Dimensional detail contact KVC (UK) Ltd
SPECIFICATION
• Bolted Bonnet
• Outside Screw and Yoke
• Yoke integral with bonnet
• Rising Stem – Handwheel
• Welded or Threaded Seat Ring –
Stellited
• Raised Face Flanged Ends or Butt Weld Ends
Other End connections are available on request.
APPLICABLE STANDARDS
• Design : ANSI B16.34
• End Flange : ANSI B16.5
• Weld Ends : ANSI B16.25
• Face-to-Face : ANSI B16.10
• Shell and Seat Test : API 598

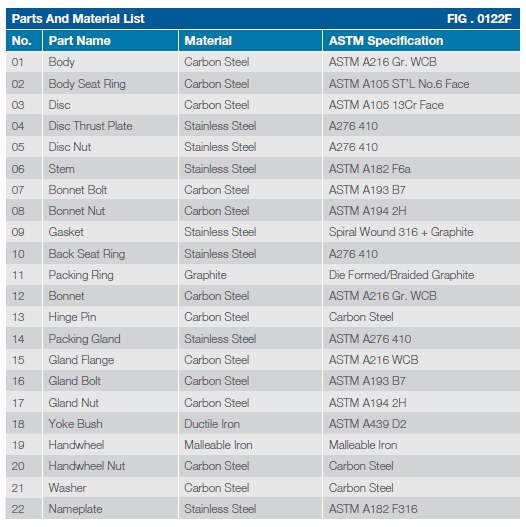

MATERIAL
Option available for materials to meet NACE MR0175 requirement.
*Please note dimensions are for information only. Order specifi carrangement drawing dimensions will be final.
CAST STEEL GLOBE VALVES - ANSI 300
OPERATOR OPTIONS
• Gear Operated recommended for size 10” above
• For Gear Dimensional detail contact KVC (UK) Ltd
SPECIFICATION
• Bolted Bonnet
• Outside Screw and Yoke
• Yoke integral with bonnet
• Rising Stem – Handwheel
• Welded or Threaded Seat Ring –
Stellited
• Raised Face Flanged Ends or Butt Weld Ends
Other End connections are available on request.
APPLICABLE STANDARDS
• Design : ANSI B16.34
• End Flange : ANSI B16.5
• Weld Ends : ANSI B16.25
• Face-to-Face : ANSI B16.10
• Shell and Seat Test : API 598
MATERIAL
Option available for materials to meet NACE MR0175 requirement.
*Please note dimensions are for information only. Order specifi carrangement drawing dimensions will be final.

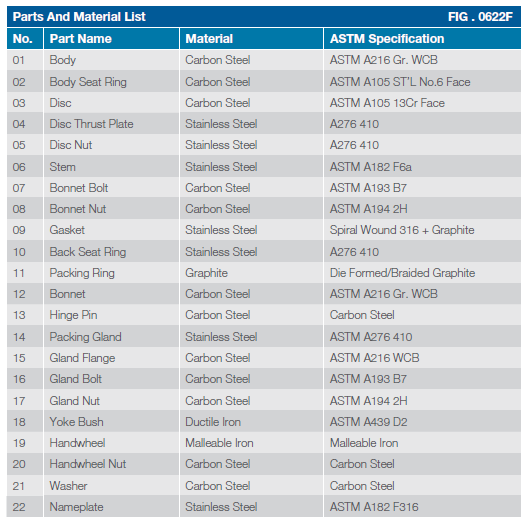

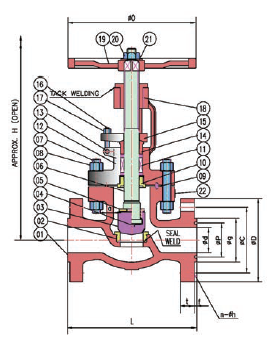

CAST STEEL GLOBE VALVES - ANSI 600
OPERATOR OPTIONS
• Gear Operated recommended for size 6” above
• For Gear Dimensional detail contact KVC (UK) Ltd
SPECIFICATION
• Bolted Bonnet
• Outside Screw and Yoke
• Yoke integral with bonnet
• Rising Stem – Handwheel
• Welded or Threaded Seat Ring –
Stellited
• Raised Face Flanged Ends or Butt Weld Ends
Other End connections are available on request.
APPLICABLE STANDARDS
• Design : ANSI B16.34
• End Flange : ANSI B16.5
• Weld Ends : ANSI B16.25
• Face-to-Face : ANSI B16.10
• Shell and Seat Test : API 598
MATERIAL
Option available for materials to meet NACE MR0175 requirement.

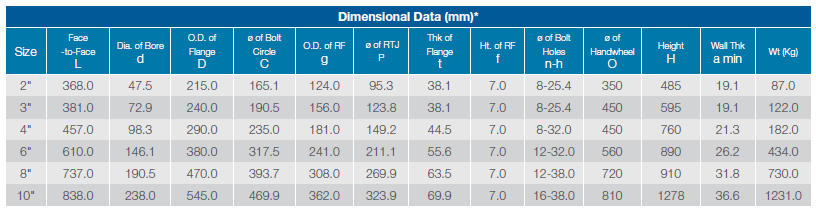

*Please note dimensions are for information only. Order specifi carrangement drawing dimensions will be final.
CAST STEEL GLOBE VALVES - ANSI 900
OPERATOR OPTIONS
• Gear Operated recommended for size 6” above
• For Gear Dimensional detail contact KVC (UK) Ltd
SPECIFICATION
• Bolted Bonnet
• Outside Screw and Yoke
• Yoke integral with bonnet
• Rising Stem – Handwheel
• Welded or Threaded Seat Ring –
Stellited
• Raised Face Flanged Ends or Butt Weld Ends
Other End connections are available on request.
APPLICABLE STANDARDS
• Design : ANSI B16.34
• End Flange : ANSI B16.5
• Weld Ends : ANSI B16.25
• Face-to-Face : ANSI B16.10
• Shell and Seat Test : API 598
MATERIAL
Option available for materials to meet NACE MR0175 requirement.
*Please note dimensions are for information only. Order specifi carrangement drawing dimensions will be final.

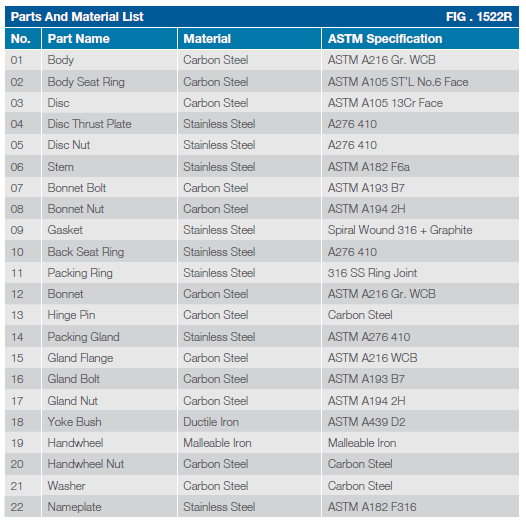

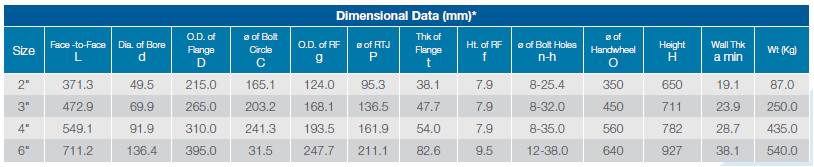

CAST STEEL GLOBE VALVES - ANSI 1500
OPERATOR OPTIONS
• Gear Operated recommended for size 4” above
• For Gear Dimensional detail contact KVC (UK) Ltd
SPECIFICATION
• Bolted Bonnet
• Outside Screw and Yoke
• Yoke integral with bonnet
• Rising Stem – Handwheel
• Welded or Threaded Seat Ring –
Stellited
• Raised Face Flanged Ends or Butt Weld Ends
Other End connections are available on request.
APPLICABLE STANDARDS
• Design : ANSI B16.34
• End Flange : ANSI B16.5
• Weld Ends : ANSI B16.25
• Face-to-Face : ANSI B16.10
• Shell and Seat Test : API 598
MATERIAL
Option available for materials to meet NACE MR0175 requirement.
*Please note dimensions are for information only. Order specifi carrangement drawing dimensions will be final.
CAST STEEL GLOBE VALVES - ANSI 1500

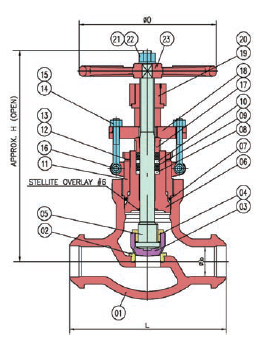

PRESSURE SEAL BONNET
OPERATOR OPTIONS
• Gear Operated recommended for size 4” above
• For Gear Dimensional detail contact KVC (UK) Ltd Engineering
SPECIFICATION
• Pressure Seal Bonnet
• Outside Screw and Yoke
• Yoke integral with bonnet
• Rising Stem – Handwheel
• Welded or Threaded Seat Ring –
Stellited
• Butt Weld Ends
Other End connections are available on request.
APPLICABLE STANDARDS
• Design : ANSI B16.34
• End Flange : ANSI B16.5
• Weld Ends : ANSI B16.25
• Face-to-Face : ANSI B16.10
• Shell and Seat Test : API 598

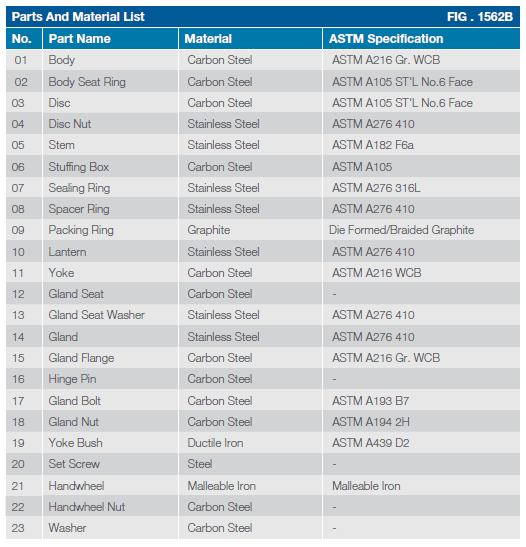

MATERIAL
Option available for materials to meet NACE MR0175 requirement.
*Please note dimensions are for information only. Order specifi carrangement drawing dimensions will be final.
