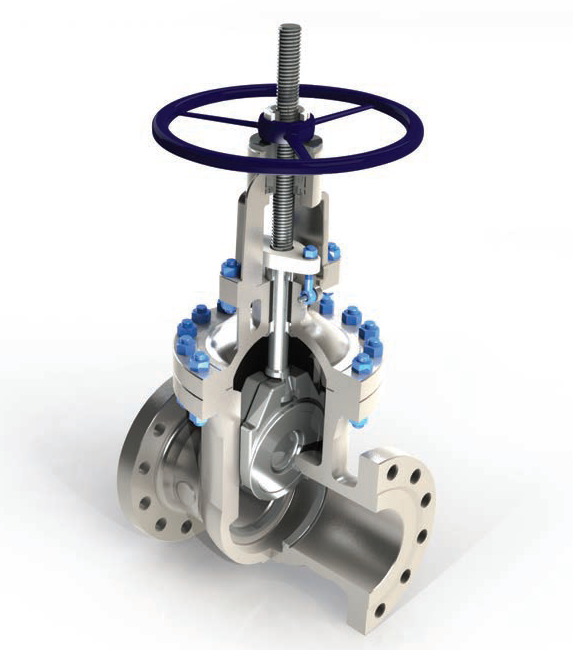

CAST STEEL GATE VALVES
CAST STEEL GATE VALVES
KVC (UK) LTD Gate valves are manufactured to API Std.600 and tested to API Std.598
Gate Valves are the most commonly used shut-off valve in the industry today. They are used where minimum pressure drop
and bi-directional on-off service is required. Gate valves are not designed for throttling service. Prolonged use in the partially open position may lead to premature wear and damage to the seating surfaces.
Our standard offering has a rising stem with an outside screw and yoke.
BODY AND BONNET
Back-Seat Bushing
Gland can be Re-packed in-situ
Wedge Clear of Flow in Full Open Position
Low Pressure Drop across valve
BODY-BONNET JOINT / GASKET
Range of materials to suit Pressure Classes

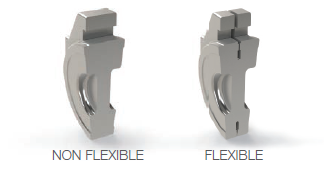

WEDGE
Flexible wedge as standard
(Solid Wedge available on request)
Reduces the likelihood of the wedge sticking
Fully guided wedges
STEM
One piece stem, forged tee-head connection
Rolled or cut ACME threads subject to valve size
Polished on the packing contact area
Ensures long life & optimal tightness
Engineered stem break-point above packing area
Ensures sealing integrity to atmosphere.
GLAND
The Gland Flange & Packing Gland are manufactured in two separate pieces
Adjustable gland in service
Optional live loaded gland can be specified
Backseated design allowing the gland packing to be replaced in situ.
STUFFING BOX
Packing contains corrosion inhibitor to avoid stem pitting.
Deep stuffi ng box design ensures long packing life.
END CONNECTIONS
As Standard production covers valves with:
Flanged ends to ANSI B16.5
RF Raised face serrated fi nish or, On request, with any other type of fi nish
RTJ Ring Type Joint
Others
Butt-welding ends (BW) to ANSI B16.25
Customer must specify the type of schedule required, or class of pipe, or diameter and bore.
Special end connections on request.
FACE to FACE
Face to Face dimensions to ANSI B16.10.
HANDWHEEL
Handwheels designed for ease of operation.
GEAR OPERATED VALVES
Valves can be supplied with bevel gear operators
MOTOR OPERATED VALVES
On request valves can be supplied equipped with, or prepared for actuators Electric / Pneumatic / Hydraulic (according to customers’ requirements).
Customer is to advise all service requirements and applicable specifi cation with enquiry.
ACCESSORIES
OnRequest:
By-passes, locking devices, chain wheels, fl oor stands, special extension stems and others.
TESTING
Standard Testing is in accordance with API 598.
Customer specifi c testing by agreement.

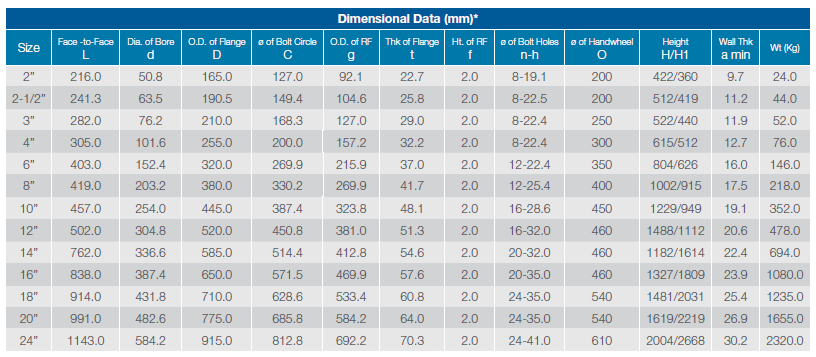

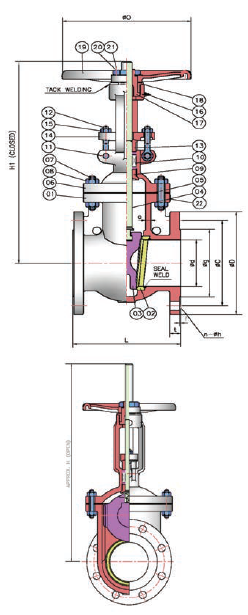

CAST STEEL GATE VALVES - ANSI 150
OPERATOR OPTIONS
• Gear Operated recommended for size 16” above
• For Gear Dimensional detail contact KVC (UK) Ltd Engineering
SPECIFICATION
• Bolted Bonnet
• Outside Screw and Yoke
• Flexible Wedge
• Oval Bonnet with integral Yoke
• Rising Stem – Non-rising Handwheel
• Welded-In / Threaded Seat Rings
• Raised Face Flanged Ends or Butt Weld Ends
Other End connections are available on request.
APPLICABLE STANDARDS
• Design : API 600
• End Flange : ANSI B16.5
• Weld Ends : ANSI B16.25
• Face-to-Face : ANSI B16.10
• Shell and Seat Test : API 598
MATERIAL
Option available for materials to meet NACE MR0175 requirement.
*Please note dimensions are for information only. Order specifi carrangement drawing dimensions will be final.
CAST STEEL GATE VALVES - ANSI 300
OPERATOR OPTIONS
• Gear Operated recommended for size 16” above
• For Gear Dimensional detail contact KVC (UK) Ltd Engineering
SPECIFICATION
• Bolted Bonnet
• Outside Screw and Yoke
• Flexible Wedge
• Oval Bonnet with integral Yoke
• Rising Stem – Non-rising Handwheel
• Welded-In / Threaded Seat Rings
• Raised Face Flanged Ends or Butt Weld Ends
Other End connections are available on request.
APPLICABLE STANDARDS
• Design : API 600
• End Flange : ANSI B16.5
• Weld Ends : ANSI B16.25
• Face-to-Face : ANSI B16.10
• Shell and Seat Test : API 598
MATERIAL
Option available for materials to meet NACE MR0175 requirement.
*Please note dimensions are for information only. Order specifi carrangement drawing dimensions will be final.

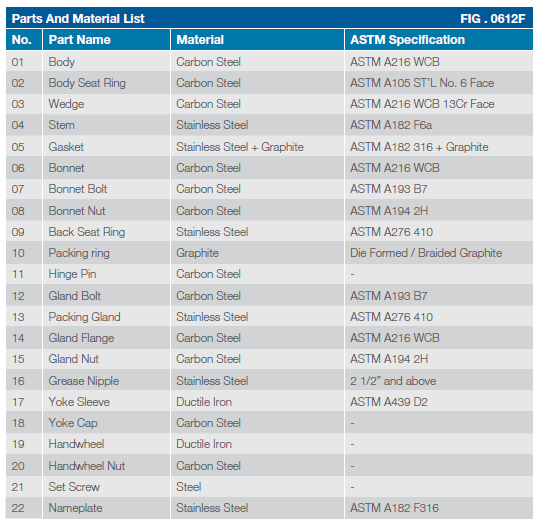

CAST STEEL GATE VALVES - ANSI 600
OPERATOR OPTIONS
• Gear Operated recommended for size 8” above
• For Gear Dimensional detail contact KVC (UK) Ltd Engineering
SPECIFICATION
• Bolted Bonnet
• Outside Screw and Yoke
• Flexible Wedge
• Oval Bonnet with integral Yoke
• Rising Stem – Non-rising Handwheel
• Welded-In / Threaded Seat Rings
• Raised Face Flanged Ends or Butt Weld Ends
Other End connections are available on request.
APPLICABLE STANDARDS
• Design : API 600
• End Flange : ANSI B16.5
• Weld Ends : ANSI B16.25
• Face-to-Face : ANSI B16.10
• Shell and Seat Test : API 598
MATERIAL
Option available for materials to meet NACE MR0175 requirement.
*Please note dimensions are for information only. Order specifi carrangement drawing dimensions will be final.

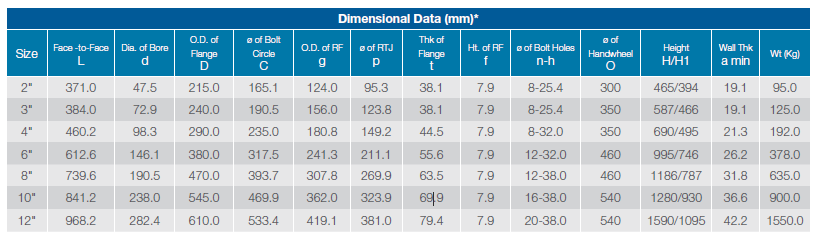

CAST STEEL GATE VALVES - ANSI 900
OPERATOR OPTIONS
• Gear Operated recommended for size 6” above
• For Gear Dimensional detail contact KVC (UK) Ltd Engineering
SPECIFICATION
• Bolted Bonnet
• Outside Screw and Yoke
• Flexible Wedge
• Oval Bonnet with integral Yoke
• Rising Stem – Non-rising Handwheel
• Welded-In / Threaded Seat Rings
• Ring Type Joint or Butt Weld Ends
Other End connections are available on request.
APPLICABLE STANDARDS
• Design : API 600
• End Flange : ANSI B16.5
• Weld Ends : ANSI B16.25
• Face-to-Face : ANSI B16.10
• Shell and Seat Test : API 598
MATERIAL
Option available for materials to meet NACE MR0175 requirement.
*Please note dimensions are for information only. Order specifi carrangement drawing dimensions will be final.

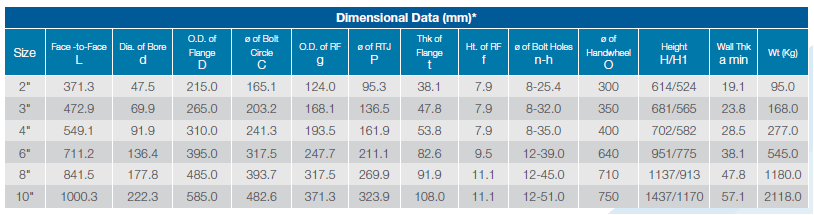

CAST STEEL GATE VALVES - ANSI 1500
OPERATOR OPTIONS
• Gear Operated recommended for size 4” above
• For Gear Dimensional detail contact KVC (UK) Ltd Engineering
SPECIFICATION
• Bolted Bonnet
• Outside Screw and Yoke
• Flexible Wedge
• Oval Bonnet with integral Yoke
• Rising Stem – Non-rising Handwheel
• Welded-In / Threaded Seat Rings
• Ring Type Joint or Butt Weld Ends
Other End connections are available on request.
APPLICABLE STANDARDS
• Design : API 600
• End Flange : ANSI B16.5
• Weld Ends : ANSI B16.25
• Face-to-Face : ANSI B16.10
• Shell and Seat Test : API 598
MATERIAL
Option available for materials to meet NACE MR0175 requirement.
*Please note dimensions are for information only. Order specifi carrangement drawing dimensions will be final.

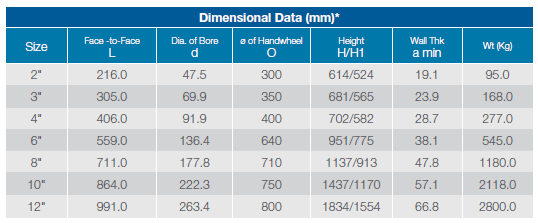

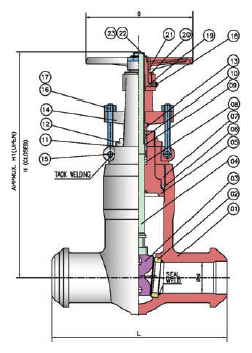

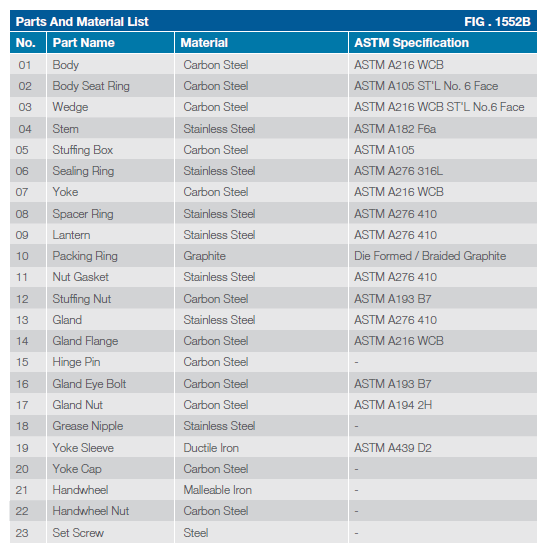

CAST STEEL GATE VALVES - ANSI 1500
PRESSURE SEAL BONNET
OPERATOR OPTIONS
• Gear Operated recommended for size 4” above
• For Gear Dimensional detail contact KVC (UK) Ltd Engineering
SPECIFICATION
• Pressure Seal Bonnet
• Outside Screw and Yoke
• Flexible Wedge
• Oval Bonnet with integral Yoke
• Rising Stem – Non-rising Handwheel
• Welded-In / Threaded Seat Rings
• Butt Weld Ends
Other End connections are available on request.
APPLICABLE STANDARDS
• Design : API 600
• End Flange : ANSI B16.5
• Weld Ends : ANSI B16.25
• Face-to-Face : ANSI B16.10
• Shell and Seat Test : API 598
MATERIAL
Option available for materials to meet NACE MR0175 requirement.
* Please note dimensions are for information only. Order specifi c arrangement drawing dimensions will be fi nal.
